330101-00-12-50-01-05 Bently Nevada Proximity Transducer
Description

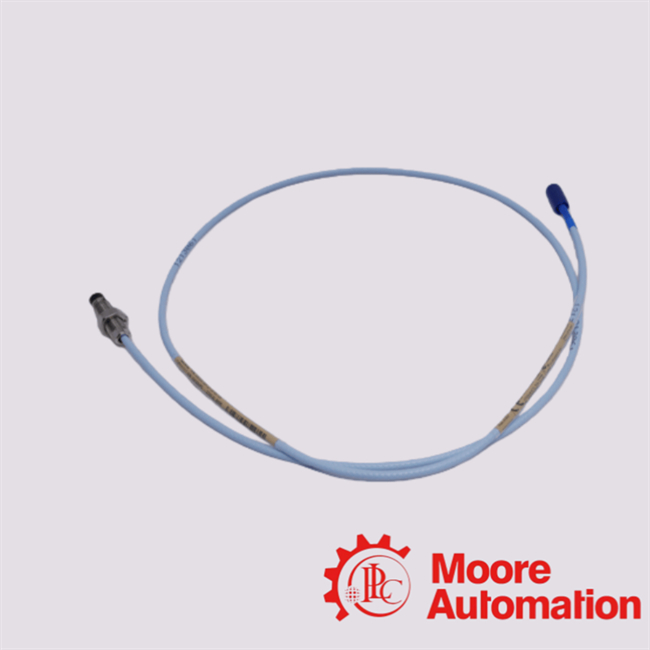

TheBently Nevada 330101‑00‑12‑50‑01‑05 Proximity Transducer (probe)is part of the 3300 XL 8 mm Proximity Transducer System.The system provides an output voltage that is directly proportional to the distance (gap)
between the probe tip and a conductive surface. It can measure both static (position) and dynamic (vibration) valuesThe 8 mm probe (larger than the 5 mm alternative) offers improved robustness and better
mechanical durability.The family supports interchangeable components: probe + extension cable + sensor can be mixed (within the 8 mm line) without individual bench matching, provided you
stay within the defined system.he probe 330101‑00‑12‑50‑01‑05 can be described as:A 3300 XL 8 mm diameter proximity probe with 3/8‑24 UNF thread mounting, standard (no armor)
body, case length ~1.2 in, total cable length ~5.0 m, with ClickLoc connector + connector protector and
certified for multiple agency approvals.
|
FAQ
|
|
Q1: What exactly does this probe measure?
A1: The probe senses the distance (gap) between its tip and a conductive target surface (typically a rotating shaft or other metal element). The
output voltage of the overall transducer system is proportional to this gap. The system can track static
displacement (position) and dynamic displacement (vibration).
|
|
Q2: What gap should I set and how is calibration addressed?
A2: The system’s performance figures assume a probe gap of 1.27 mm (50 mils) to an AISI 4140 steel target. If a different
target material is used, the factory can supply calibration to that alternative, but performance
(accuracy/interchangeability) may vary.
|
|
Q3: If I have to replace the cable length, what should I consider?
A3: The “50” option in this probe indicates a 5.0 m total length (probe + cable). If you substitute a different length
extension cable, you must ensure the total system length (probe + extension cable + Proximitor)
remains within the validated length for your system, and check that electrical characteristics
(resistance, capacitance) stay within specification. The datasheet warns that system
performance may be affected by field
wiring length.
|
