330500-06-02 Bently Nevada Sensor Proximity

Name: 330500-06-02 Bently Nevada Sensor Proximity
Brand: MOORE AUTOMATION LIMITED
SKU: 330500-06-02
Availability: InStock

Detalles del producto:

Lugar de origen:	EE.UU
Nombre de la marca:	Bently Nevada
Certificación:	CO.CQ
Número de modelo:	330500-06-02

Información detallada

Lugar de origen:

EE.UU

Nombre de la marca:

Bently Nevada

Certificación:

CO.CQ

Número de modelo:

330500-06-02

Descripción:

El sensor de proximidad

Número de parte:

330500-06-02

Marca:

Bentily Nevada

Año de fabricación:

2020

Solicitud:

Planta de energía nuclear

Tiempo de entrega:

en stock

Peso:

4 libras

Resaltar:

High Light

Resaltar:

Bently Nevada proximity sensor

3500 System proximity sensor

Bently Nevada sensor with warranty

Información comercial

Cantidad de orden mínima:

Precio:

inquiry

Detalles de empaquetado:

nuevo y original con fábrica sellada

Tiempo de entrega:

hoy

Condiciones de pago:

T/T

Capacidad de la fuente:

10 piezas al día

Descripción del producto

330500-06-02 Bently Nevada Sensor Proximity

`Description`

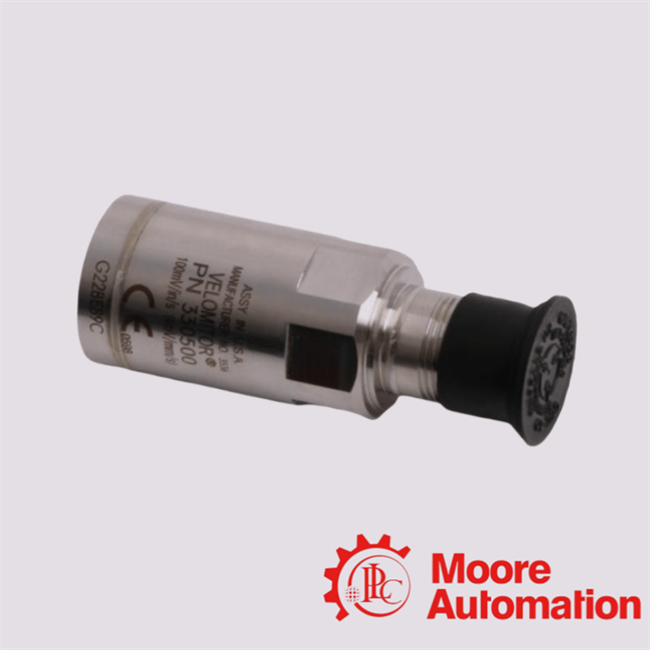

The Bently Nevada 330500 series is part of the Velomitor family of piezoelectric velocity / vibration sensors designed to

measure absolute vibration (i.e. relative to free space) of a machine

casing, bearing housing, or structure.

330500-06-02 Details

FAQ

Q1. Is “330500-06-02” a proximity probe (eddy-current) or a vibration sensor?

Despite “proximity” sometimes being used loosely, the 330500 series is a piezoelectric

velocity / vibration sensor (Velomitor). It senses casing vibration

rather than shaft displacement.

Q2. What does the “-06-02” suffix mean?

The “-06” often refers to the mounting thread / adapter, e.g. “-06: 5/8-18 UNF thread” in some listings.

The “-02” may denote a particular agency approval / certification (for e.g. ATEX /

hazardous area compatibility) in that variant.

Q3. How do I mount the sensor?

Use a rigid, clean, smooth mounting surface on the bearing housing or structural casing.

Improper mounting can degrade amplitude and frequency response.

Torque the mounting properly (24–40 in-lb).

Q4. What range of vibration signals can it detect?

Useful within ~4.5 Hz to 5 kHz (±3 dB) band.

Up to ~1270 mm/s (50 in/s) peak velocity.
