330101-00-43-15-02-00 Bently Nevada Proximity Probes

Name: 330101-00-43-15-02-00 Bently Nevada Proximity Probes
Brand: MOORE AUTOMATION LIMITED
SKU: 330101-00-43-15-02-00
Availability: InStock

Detalles del producto:

Lugar de origen:	EE.UU
Nombre de la marca:	Bently Nevada
Certificación:	CO.CQ
Número de modelo:	330101-00-43-15-02-00

Información detallada

Lugar de origen:

EE.UU

Nombre de la marca:

Bently Nevada

Certificación:

CO.CQ

Número de modelo:

330101-00-43-15-02-00

Descripción:

Sondas de proximidad

Número de parte:

330101-00-43-15-02-00

Marca:

Bentily Nevada

Año de fabricación:

2020

Solicitud:

Planta de energía nuclear

Tiempo de entrega:

en stock

Peso:

4 libras

Resaltar:

High Light

Resaltar:

Bently Nevada proximity probes with warranty

Bently Nevada 3500 system proximity sensors

industrial proximity probes for vibration monitoring

Información comercial

Cantidad de orden mínima:

Precio:

inquiry

Detalles de empaquetado:

nuevo y original con fábrica sellada

Tiempo de entrega:

hoy

Condiciones de pago:

T/T

Capacidad de la fuente:

10 piezas al día

Descripción del producto

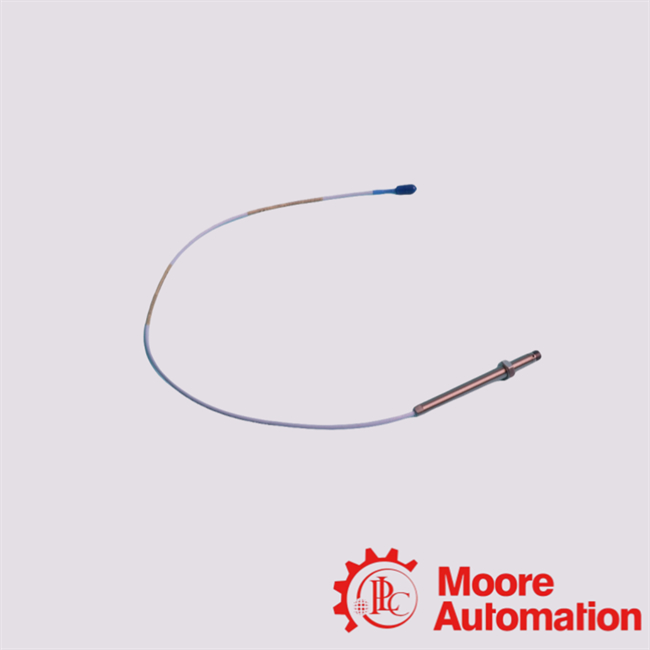

330101-00-43-15-02-00 Bently Nevada Proximity Probes

`Description`

The Bently Nevada 330101-00-43-15-02-00 is an 8 mm proximity probe belonging to the 3300 XL series,

designed for high-accuracy vibration and position monitoring in industrial applications.

330101-00-43-15-02-00 Details

FAQ

1. What system does this probe belong to?

The 330101-00-43-15-02-00 is part of the 3300 XL 8 mm proximity transducer system,

which includes the probe, extension cable, and Proximitor sensor.

2. What is the sensitivity and linear range?

The nominal sensitivity is 200 mV/mil (7.87 mV/µm) with a linear range of approximately 2.0 mm (80 mils)

when used with the matching Proximitor and specified total system length.

3. How do I know if my probe and extension cable lengths match?

Bently Nevada systems are factory calibrated as a total length (commonly 5 m or 9 m). The suffixes define

those lengths. Mixing unmatched lengths (e.g., a 1 m probe with a 7 m extension for a 5 m driver)

will change sensitivity and bias voltage and is not recommended.

4. Can I interchange a 330101 probe with other 3300 XL probes?

Only within the same family and calibrated system length. 5 mm, 8 mm, and NSv probes/drivers are not

interchangeable unless the datasheet states otherwise.
