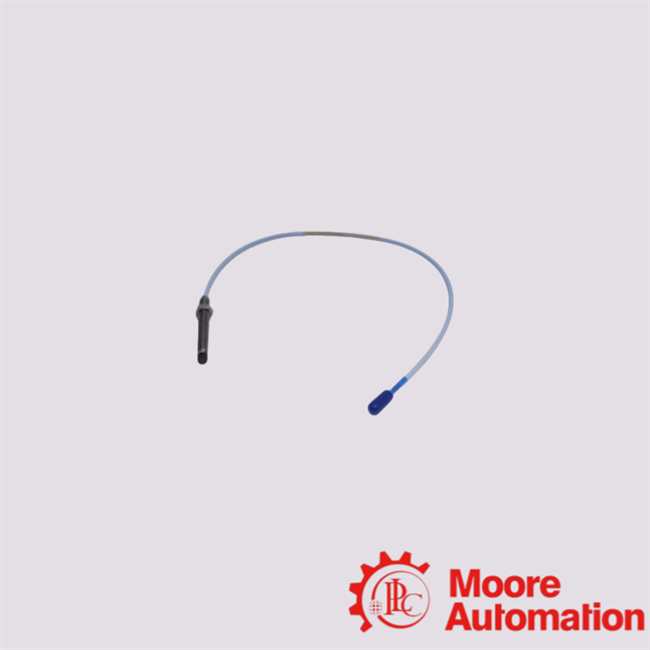

330101-00-43-15-02-05 Bently Nevada Proximity Probe
Description
Bently Nevada 330101-00-43-15-02-05 is a member of the 3300 XL 8 mm proximity probe family designed for precise, reliable non-contact shaft vibration,
radial/axial position, and Keyphasor® measurements on rotating machinery. When paired with its matching extension cable and a 3300 XL Proximitor® sensor,
the probe delivers the industry-standard 200 mV/mil (7.87 mV/µm) sensitivity and a wide linear range, ensuring API 670-compliant condition and protection monitoring.
330101-00-43-15-02-05 Details
|
FAQ
|
|
1) What system does this probe belong to?
The 330101 is part of the 3300 XL 8 mm proximity transducer system
(probe + extension cable + 3300 XL Proximitor® sensor).
|
|
2) What is the sensitivity and linear range?
Nominal sensitivity is 200 mV/mil (7.87 mV/µm) with a linear range of ~2.0 mm (80 mils)
when used with the matching Proximitor® and specified total system length.
|
|
3) How do I know if my probe and extension cable lengths match?
Bently Nevada systems are factory calibrated as a total length (commonly 5 m or 9 m). The suffixes define those lengths.
Mixing unmatched lengths (e.g., a 1 m probe with a 7 m extension for a 5 m driver) will change sensitivity and bias voltage and is not recommended.
|
|
4) Can I interchange a 330101 probe with other 3300 XL probes?
Only within the same family and calibrated system length. 5 mm, 8 mm,
and NSv probes/drivers are not interchangeable unless the datasheet states otherwise.
|
