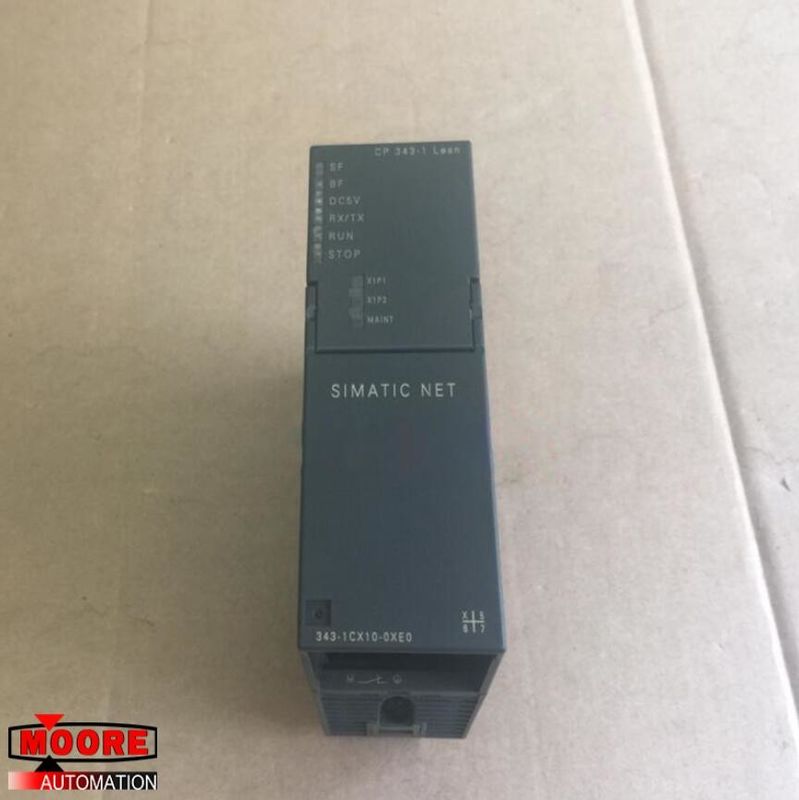

Procesador de comunicaciones de 6GK7 343-1CX10-0XE0 6GK7343-1CX10-0XE0 CP343 Siemens SIMATIC S7-300

Product Details

Communications processor CP 343-1 Lean for connection of SIMATIC S7-300 to Industrial Ethernet via TCP/IP and UDP,Multicast, SEND/RECEIVE with and without RFC1006, Fetch/ Write,

S7 communication (server), PROFINET IO device integrated 2-port switch ERTEC 200, Module replacement without PG, SNMP diagnostics, initialization via LAN, 2x RJ45 connection for LAN with 10/100 Mbit/s.

Transfer rate:at the 1st interface 10 ... 100 Mbit/s

Interfaces:

Number of interfaces / acc. to Industrial Ethernet 2

Number of electrical connections: at the 1st interface / acc. to Industrial Ethernet 2; for power supply 1

Type of electrical connection: of Industrial Ethernet interface RJ45 port; at the 1st interface / acc. to Industrial Ethernet RJ45 port

Type of electrical connection: for power supply 2-pole plugable terminal block

Supply voltage, current consumption, power loss

Type of voltage / of the supply voltage DC

Supply voltage / 1 / from backplane bus 5 V

Supply voltage 24 V

Supply voltage / external 24 V

Supply voltage / external / at DC / Rated value 24 V

Relative positive tolerance / at DC / at 24 V 20 %

Relative negative tolerance / at DC / at 24 V 15 %

Consumed current:

from backplane bus / at DC / at 5 V / typical 0.2 A

from external supply voltage / at DC / at 24 V / typical 0.16 A

from external supply voltage / at DC / at 24 V / maximum 0.2 A

Power loss [W]- 5.8 W

Performance data / PROFINET communication / as PN IO device

Product function / PROFINET IO device Yes

Amount of data:

as user data for input variables / as PROFINET IO device / maximum-512 byte

as user data for input variables / as PROFINET IO device / maximum-512 byte

as user data for input variables / for each submodule as PROFINET IO device-240 byte

as user data for input variables / for each submodule as PROFINET IO device-240 byte

as user data for the consistency area for each sub-module-240 byte

Number of submodules / per PROFINET IO-Device 32
