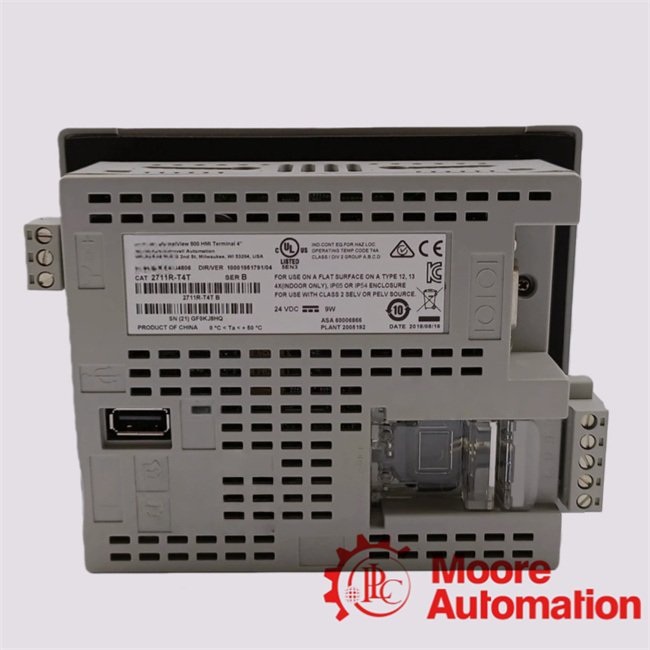

2711R-T4T Allen Bradley Touch Screen TFT
Specification
|
Product Description
|
|
The Allen Bradley 2711R‑T4T is part of the PanelView 800 family of HMI (Human‑Machine Interface) terminals from Allen Bradley / Rockwell Automation.
Key points:It is a 4.3‑inch (diagonal) color TFT touchscreen terminal (display type: color transmissive TFT active matrix LCD) designed
for machine/operator control panels.It is positioned for small‑to‑mid size machine control, where an operator interface is needed
to display machine status, accept input, process recipes, alarms, etc.As a PanelView 800 family member, it comes
with features like high‑resolution display, LED backlight, built‑in memory and
support for SD/micro‑SD or USB for loading recipes/data.
|
| More Technical Data |
| Display & Input |
Touchscreen input method (resistive touch) + 4 programmable function keys (for this model) are referenced in specs. |
| Communication & Memory |
It has at least one Ethernet port (10/100 Mbps) and at least one serial communication port (RS‑232 and/or RS‑422/RS‑485) depending on configuration. |
| Mechanical |
Approximate dimensions: Height ~116 mm, Width ~138 mm, Depth ~43 mm for 4.3″ model. |
| Certifications & Other |
Type approval certificate for ship/offshore conditions (DNV/GL) exists for this model (and family). |
| Frequently Asked Questions |
|
Q1. Which controllers can this HMI interface with?
A1. The PanelView 800 4.3″ (2711R‑T4T) is optimized for compatibility with controllers such as Micro800™, MicroLogix™, CompactLogix™, etc.
It also supports Ethernet/serial communication so it can interface with many PLCs/automation
systems provided the proper protocol configuration is used.
Q2. What software do I need to configure the application on this HMI?
A2. You’ll need the configuration software (depending on your license) for PanelView 800. The documentation indicates that you
can upload/download data, manage recipes, import/export languages (.xlsx) etc. You should confirm the exact
software version required from Rockwell Automation or your supplier.
Q3. Does it support multiple languages or recipe management?
A3. Yes — the specs note that the terminal supports recipe capability (upload/download groups of data/parameter settings)
and multi‑language support.
Q4. What mounting / cutout details should I consider?
A4. For panel‑mounting the device you should ensure the cut‑out dimensions match (for 4.3″
model ~99 mm × 119 mm) and that the panel surface is flat and meets sealing
requirements (to maintain IP rating) as per
installation instructions.
|
