En casa > productos >

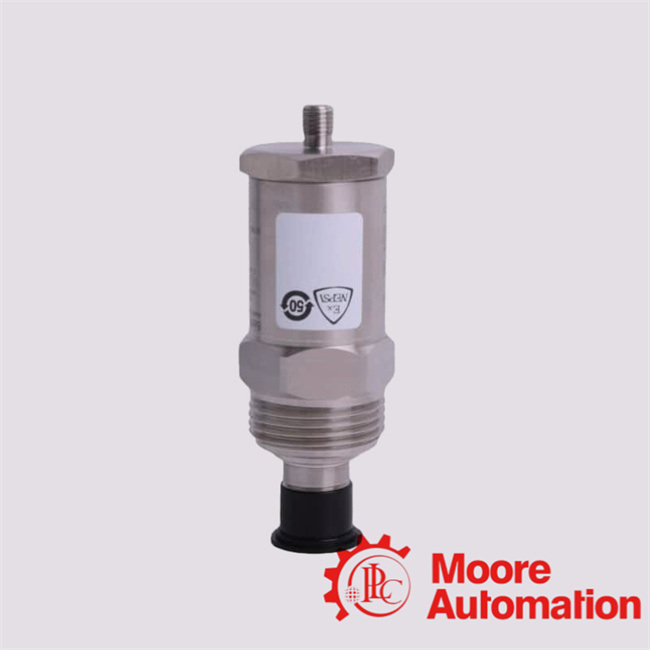

190501-11-00-04 Bently Nevada Velomitor CT Transducer

Name: 190501-11-00-04 Bently Nevada Velomitor CT Transducer
Brand: MOORE AUTOMATION LIMITED
SKU: 190501-11-00-04
Availability: InStock

Detalles del producto:

Lugar de origen:	EE.UU
Nombre de la marca:	Bently Nevada
Certificación:	CO.CQ
Número de modelo:	190501-11-00-04

Información detallada

Lugar de origen:

EE.UU

Nombre de la marca:

Bently Nevada

Certificación:

CO.CQ

Número de modelo:

190501-11-00-04

Descripción:

Transductor de TC Velomitor

Número de parte:

190501-11-00-04

Marca:

Bentily Nevada

Año de fabricación:

2020

Aplicación:

Planta de energía nuclear

Tiempo de entrega:

En stock

Peso:

4 libras

Resaltar:

High Light

Resaltar:

Bently Nevada Velomitor CT transducer

3500 System vibration transducer

Bently Nevada transducer with warranty

Información comercial

Cantidad de orden mínima:

Precio:

inquiry

Detalles de empaquetado:

nuevo y original con fábrica sellada

Tiempo de entrega:

hoy

Condiciones de pago:

T/T

Capacidad de la fuente:

10 piezas al día

Descripción del producto

190501-11-00-04 Bently Nevada Velomitor CT Transducer

`Description`

The 190501-series “Velomitor CT” by Bently Nevada is a low-frequency piezoelectric velocity transducer designed to measure casing

vibration velocity in equipment such as cooling towers and air-cooled heat-exchanger fan assemblies.

190501-11-00-04 Details

FAQ

1. What rotational speeds is this sensor suitable for?

It is designed for equipment operating at or above ~90 rpm (100–300 rpm typical). If equipment runs significantly slower, you should verify that the sensor’s low‐frequency response covers the application.

2. What signal output does it provide?

Standard sensitivity is approx. 100 mV/in/s (≈3.94 mV/mm/s) ±5%. Some variations mention “200 mV/in/s ±3%” for higher output

versions. If you require a 4–20 mA output variant, check with supplier whether that option exists (

some listings mention “4-20 mA optional”).

3. Can I use this sensor for high-speed rotating machines (e.g., 3600 rpm)?

While the 190501 is tuned for low frequencies typical of slow-speed fans, it still covers up to ~1 kHz frequency

range in some versions. However, for very high‐speed machines it may not be the optimal sensor;

check the standard Velomitor or other models designed for higher rpm.

4. Is a calibration required?

Yes — especially for critical measurements. There are guides for calibrating the 190501 using a

low‐frequency portable vibration calibrator. Calibration helps ensure correct

sensitivity and frequency response, especially at low speeds.
